Pico-Microinjectors

Applications:

  • Microinjection into adherent cells or into free-floating cells with cell-holding output.

  • Intracytoplasmic Sperm Injection (ICSI).

  • Cell surgery, RNA, DNA transfer, chromosome dissection.

  • Cytoplasm or nucleus extraction.

  • Cell selection, pick-up, and movement.

  • Mouse embryo injections, microinjection for eggs of zebrafish, drosophila and lizard, etc. within various studies and research projects.

  • Precision and versatile pneumatic injection engine for cell surgery and cell physiological research.

  • Accurate microinjection, suction, clearing , balancing and venting can be delivered

  • Gentle sucking, cleaning, holding, releasing and pushing a cell can be delivered from another cell holding port.

  • Highest repeatability with pressure readings, savable timers. Adding programmable action sequences, counters in PM2000.

  • All programming and actions are controlled by an advanced microprocessor.

  • User-friendly keyboard, foot switch, remote keypad or mouse, full information LCD display, digital port for future mouse control manipulator interface. Digital trigger signal in/out ports for biophysics applications in PM2000.

  • Convince and compact size of the MCM-PM model combines two-side mouse control manipulators and PM Programmable Microinjector.

Features:

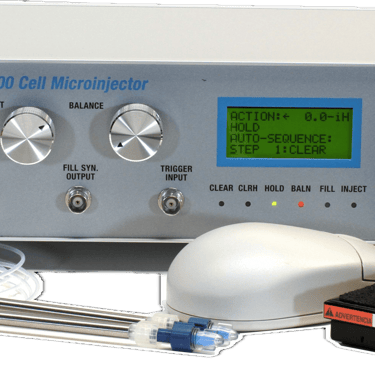

PM1000 CELL MICRINJECTOR

LINE VOLTAGE
POWER CONSUMPTION
INPUT GAS PRESSURE
CLEARING PRESSURE
CLEAR HOLD PRESSURE
INJECTION PRESSURE
BALANCE PRESSURE
FILL VACUUM
HOLD VACUUM
TIMER SETTING
COUNTER SETTING
SEQUENCE/STEP SET
SWITCH PORTS
REMOTE CONTROL PORT
TRIGGER IN/OUTPUT PORTS
ACCESSORIES
OPTIONAL ACCESSORIES
Specified 100, 120 or 220, 240 VAC
35 Watts
60 - 100 psi
Same as input pressure
0-3 psi ( regulated and displayed)
0.1 - 60 psi ( regulated and displayed )
0 - 10 psi ( regulated and displayed )
0 - 26" Hg ( regulated and displayed)
0 - 25" of H2O ( regulated and displayed )
0.01 to 327.67 sec.(10 msec. resolution), CONTINUE, MANUAL control for all Inject, Fill, Clear and Clear Hold + pulse acts.
1 - 255 for all Inject, Fill, Clear and Clear Hold functions.
30 sequences, 30 steps for each sequence presets.
One for special 3-function mouse. One for foot switch programmable trigger inject, clear, balance, hold, clear hold or vent acts.
DB9 female connector for optional remote keypad or mouse control manipulator interface or computer interface.
Input AUTO trigger BNC and 2 BNCs for inject and fill signal output
One IP- 1 ( 6’ input tubing with connector ). Two OP- 2 ( 3’ output tubing with connector ). One FSW ( foot switch ).
HOLD-1, HOLD-1.2, HOLD-1.5 1, 1.2 or 1.5 mm O.D. pipette holder. PM-KP remote control key pad.MOUSE-1 special 3-function mouse. RK-1 rack mounting kits with handles.

PM2000 PROGRAMMABLE CELL MICRINJECTOR

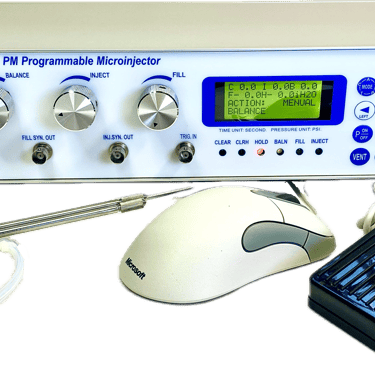

PM Programmable Microinjector (can be set as PM1000 or PM2000)

Specifications:

Specified 100, 120 or 220, 240 VAC
35 Watts
60 - 100 psi
Same as input pressure
0-3 psi ( regulated and displayed)
0.1 - 60 psi ( regulated and displayed )
0 - 10 psi ( regulated and displayed )
10 - 20" Hg fix ( depending on 50-80 psi input pressure)
0 - 25" of H2O ( regulated and displayed )
0.01 to 327.67 sec.(10 msec. resolution) CONTINUE or MANUAL control for Inject, Fill. Pulse + manual control Clear and Clear Hold acts.
Display Inject, Fill acting count only.
No sequencing.
One for special 3-function mouse. One for foot switch programmable trigger inject, clear, balance, hold, clear hold or vent acts.
DB9 female connector for optional remote keypad or mouse control manipulator interface or computer interface.
No.
One IP- 1 ( 6’ input tubing with connector ). Two OP- 2 ( 3’ output tubing with connector ). One FSW ( foot switch ),
HOLD-1, HOLD-1.2, HOLD-1.5 1, 1.2 or 1.5 mm O.D. pipette holder. PM-KP remote control key pad.MOUSE-1 special 3-function mouse. RK-1 rack mounting kits with handle

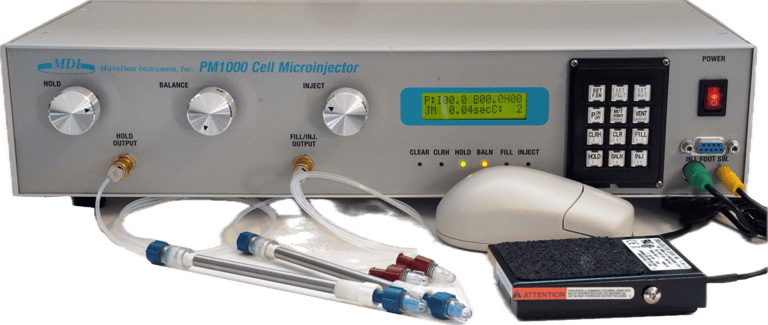

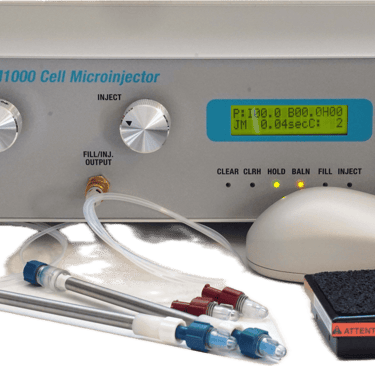

PM1000

PM2000

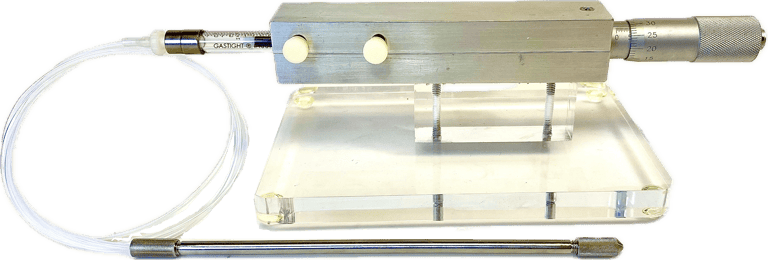

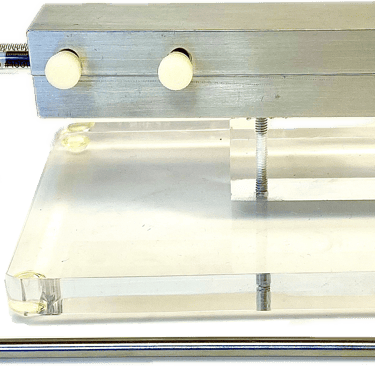

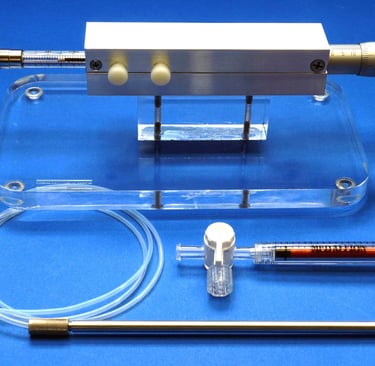

MM-100 Manual Microinjector

MM-100 Manual Microinjector

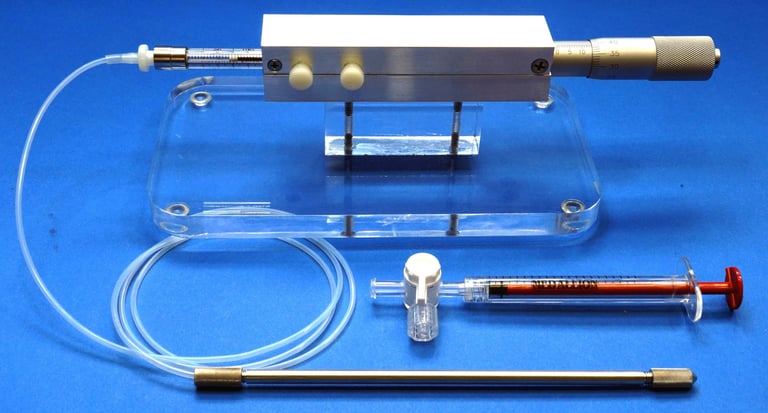

+HOLD-1S Pipette Holder +Syringe and T Connector

+HOLD-1S Pipette Holder

Specifications:

Syringe

Volume

Volume per

Revolution

Volume per

Division

Total Inject Volume

16.7 ul

33.3 ul

83.3 ul

333.3 ul

8.3 nl

16.7 nl

41.7 nl

166.7 nl

417 nl

833 nl

2.08 ul

8.3 ul

50 ul

100 ul

250 ul

1000 ul

Features:

The MM-100 Manual Microinjector is designed for manual control microliter to nano-liter volume precision injection. The MM-100 Manual Microinjector is a manual pneumatic or hydraulic syringe driver for injection needle or holding pipette. It can be used for applications of precise tiny liquid volume injection with easily volume setting and adjustment. It also is a convenient intuitive tool for holding egg , sucking and pushing sperm in ICSI application.

The MM-100 Manual Microinjector is compose of precision turning micrometer and precision measuring instrument syringe with seamless engineering mechanic connection. There are four volume syringe sizes of 50 ul, 100 ul, 250 ul and 1 ml for selecting. The 1 ml size syringe selection will be non-rotation pushing connection, other sizes will be directly rotation pushing connection. All syringes come with universal male luer connector which can be connected to tubing- pipette holder and T-syringe for hydraulic liquid adding.

Applications:

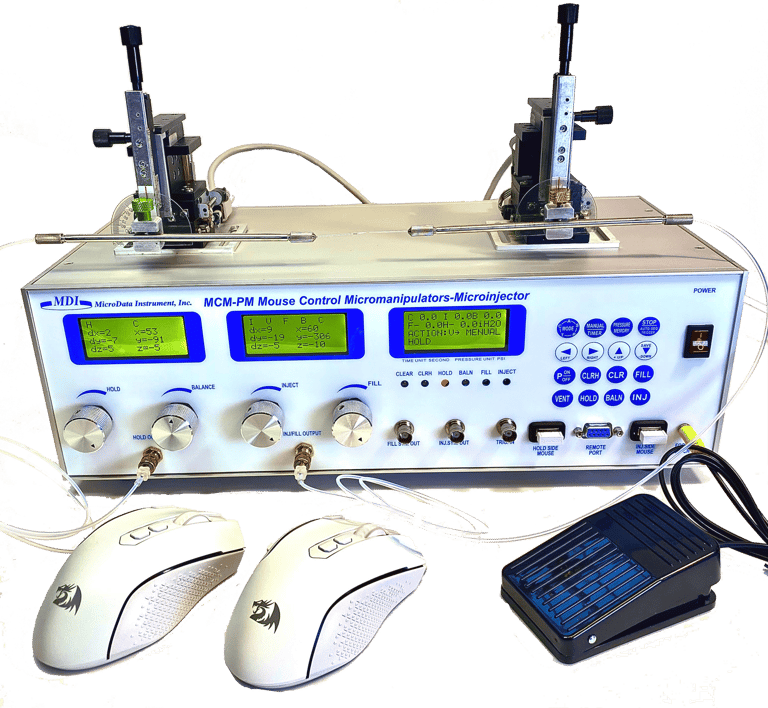

MCM-PM Mouse Control Micromanipulators-Microinjector

The MCM-PM Mouse Control Micromanipulators-Microinjector is a new design which combines a PM2000 Programmable Pico-Microinjector with both left and right-hand side remote mouse control micromanipulators together in a compact box. The MCM-PM makes the microinjection setup easier in a compact position. There are two wireless mice that can control the 3-D movements of both side micromanipulators, but they can also control all actions of the PM microinjector. There is a convenient foot switch that can be programmed for triggering any action of the microinjector. There are three LCD screens that separately display microinjector information, injection side micromanipulator 3D moving data, and hold cell side micromanipulator 3D moving data. Therefore, a complicated microinjection project can be accomplished in a compact and perfect manner with the MCM-PM application.

Specifications:

INJECTOR PORTION
MANIPULATOR PORTION
Identical as the PM2000 PROGRAMMABLE CELL MICRINJECTOR in above.
Same as MCM Wireless Mouse Control Micromanipulator in following page:
MCM Specifications
