Micropipette Pullers

MDI has created and manufactured the most complete series of micropipette pullers in the world. Our PMP series pipette pullers cover various materials from polycarbonate plastic and borosilicate glass to quartz glass, accommodating all different kinds of capillaries for pulling. MDI is the first and only company to use advanced pneumatic techniques for micropipette pulling, which creates an unmatched and effective way to pull all kinds of micropipettes in the world. The following different puller models will be illustrated in detail and described along with their various uses and applications:

Features:

The PMP102 is a state of the art microprocessor controlled glass micropipette puller. It pulls a glass pipette horizontally to two identical micropipettes each time. Varied micropipettes, such as patch clamp electrodes, intracellular electrodes, injection micropipette, hold cell pipette and microneedles all can be pulled out by sophisticated preset sequences or sequences programmed and created by users. To achieve these versatility and the higher degree of reproducibility, many advanced technologies are applied on this micropipette puller.

• Exclusive Optical-Digital Taper Measurement.

• Computerize Real-Time Feedback Heater Control.

• Expertise Preset Pulling/Polishing Sequences and Physical Pulled Samples from 99 Programmable Savable Sequences for Reliable Reproduction and Creation.

• Pneumatic Pulling Force and Very Compact Size.

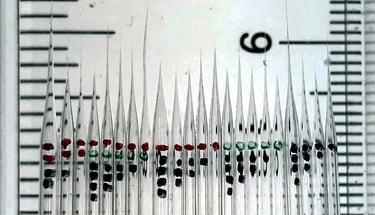

• Physical samples pulled from all preset sequences with every sale unit.

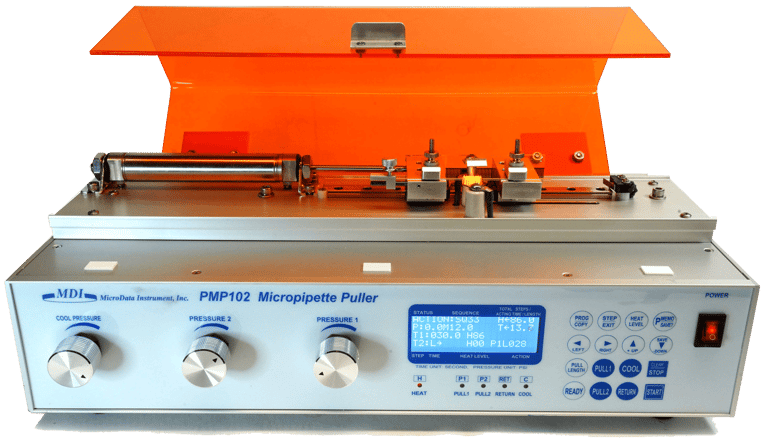

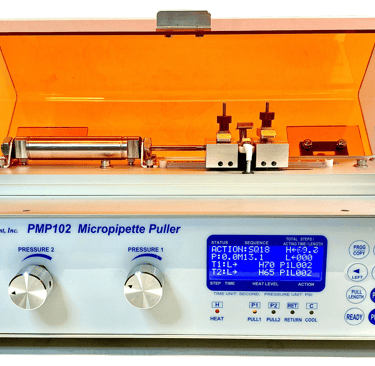

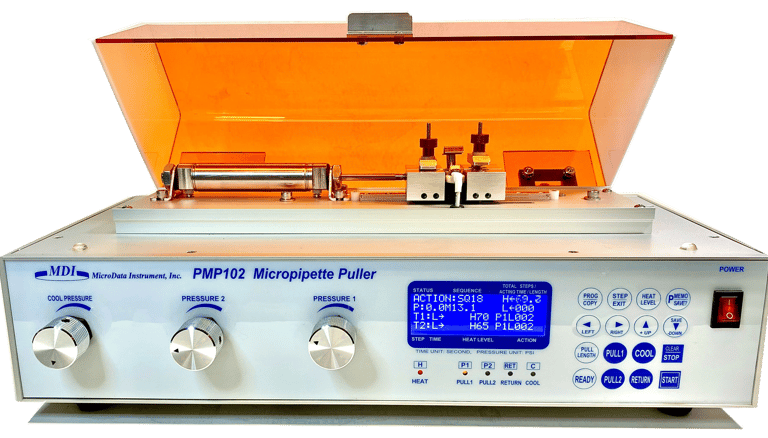

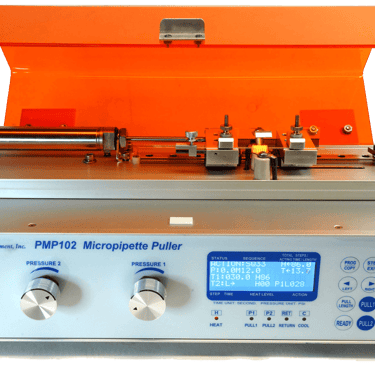

PMP102 Programmable Micropipette Puller

The PMP102LD is an upscale and heavy duty model of the PMP-102 Programmable Micropipette Puller. It keeps all advanced features of the PMP-102, plus applied more heavy duty linear bearing rail and pulling cylinder, higher power and larger heat coil and longer pulling distance ability. There are pipette setting special fixture and broken glass damage avoiding mechanical arrangement design. All these upgrades make the PMP-102LD suitable for pipette pulling larger production application.

Features:

• Exclusive Optical-Digital Taper Measurement

• Computerize Real-Time Feedback Heater Control

• Expertise Preset Pulling/Polishing Sequences and Physical Pulled Samples from 99 Programmable Savable Sequences for Reliable Reproduction and Creation

• Pneumatic Pulling Force and Very Compact Size

• Heavy Duty Production Model,Pull Longer Tap than general PMP102.

• Physical samples pulled from all preset sequences with every sale unit.

PMP102LD Programmable Micropipette Puller

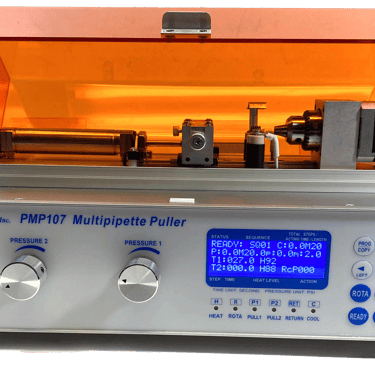

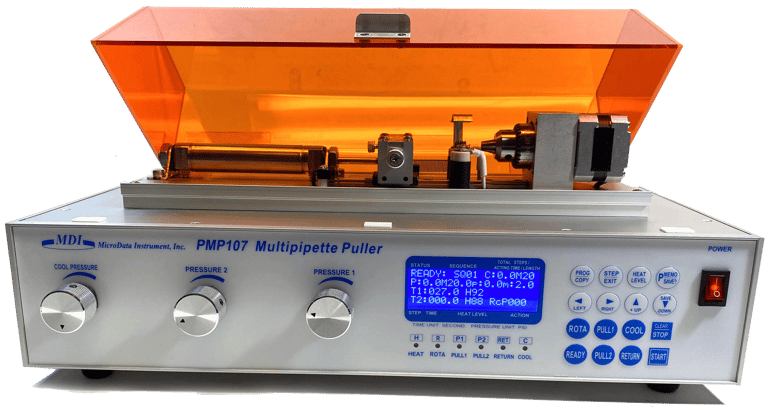

PMP107 Programmable Multipipette Puller

The PMP107 is a state of the art microprocessor controlled multi-barrel glass micropipette puller. It can pull single barrel or multi-barrel (3, 4 or 7-barrel) glass pipette horizontally. Varied micropipettes from single to 7-barrel can be produced as patch clamp electrodes, intracellular electrodes, injection needles, holding pipette for precision multichannel drug, agents injection and perfusion. All can be pulled out by sophisticated preset sequences or sequences programmed and created by users.

• Programmable Rotation Twist and Precision Pulling.

• Exclusive Optical-Digital Ruler Measurement.

• Computerize Real-Time Feedback Heater Control.

• Expertise Preset Pulling Sequences and Physical Pulled. Samples with up to 99 Programmable Savable Sequences for Reliable Reproduction and Creation.

• Pneumatic Pulling Force and Compact Size.

• Physical samples pulled from all preset sequences with every sale unit.

Features:

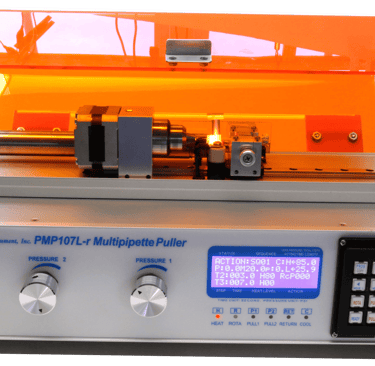

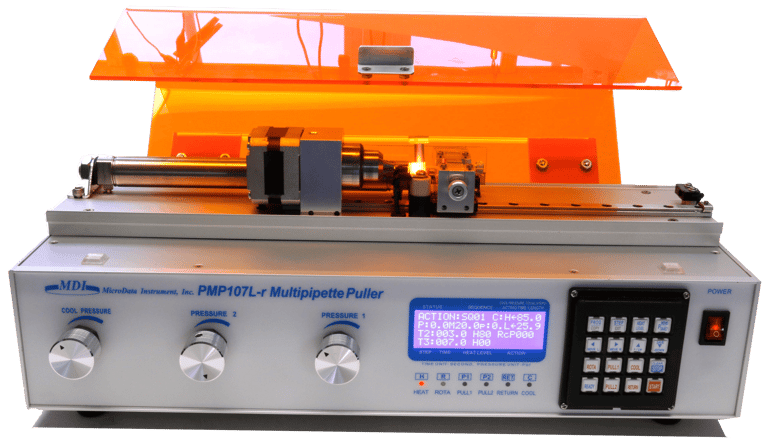

PMP107Lr Programmable Super Length Multipipette Puller

The PMP-107Lr Programmable Super Length Multipipette Puller is specially designed to pull from short to extra long taper and tip for single to multipipette with twisting(rotation) function, which can pull single or bundled 3,4,7 barrel pipettes. The PMP-107Lr actually is an extra long pulling version of the PMP-107. The PMP-107Lr has all advanced technical features and precision mechanics of the PMP-107, plus a larger and longer heat coil for more heating power range and a 120 mm longer optical ruler and longer pulling mechanism, which let the PMP-102Lr can pull up to 120 mm longer tip than the PMP-107 can pull. Manufacture preset program sequences give user more choices from short tip to super long tip pulling option.

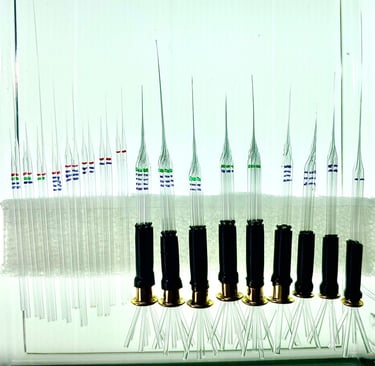

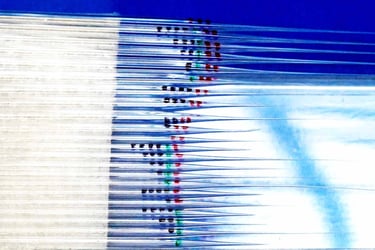

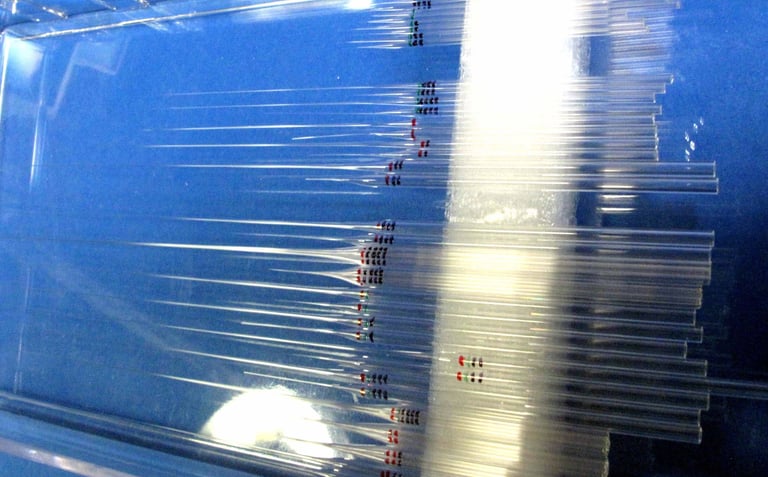

• Physical pipette samples pulled from all preset sequences with color dots indicating different sequences (+1, 5, 10) on every selling unit.

The PMP-107Le Programmable Super Length Micropipette Puller is specially designed and upgraded to pull borocilicate glass or polycarbonet plastic capillary with extra long taper and tip for single to multipipette without twisting (no rotation), which can be prepared to be cut different opening size with stonger longer taper for IVF and ICSI applications. A long carbon or metal fiber also can be inserted inside the capillary pulled for making a long electrode application. The pair of pipette clamps are open ends on the PMP-107Le, an extra long fiber can be left out of both ends of pipette for pulling an extra long electrode. Therefore, the PMP107Le is straight pulling super length puller and excellent for IVF, ICSI aplications as well as short to long fiber inside electrode pipette pulling.

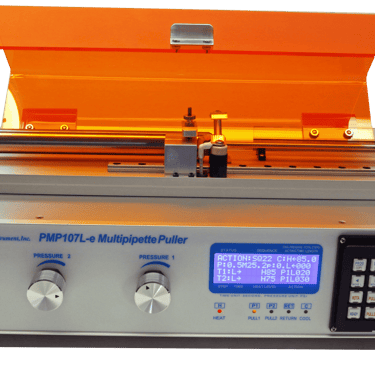

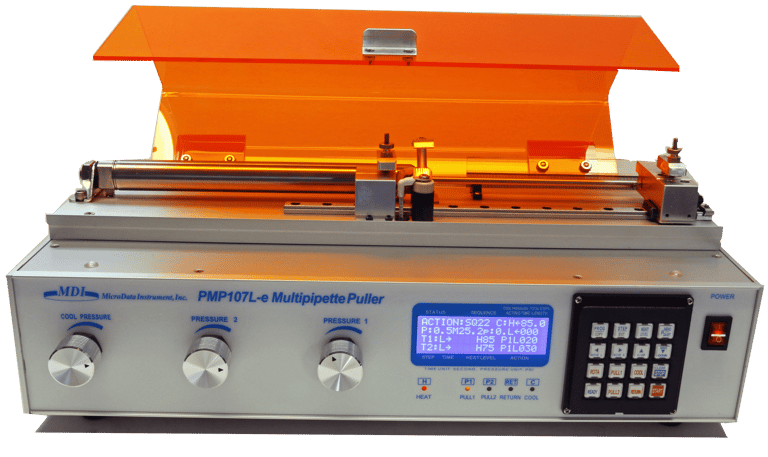

PMP107Le Programmable Super Length Micropipette Puller

The PMP-107Le is not only adopted with all advanced technical features and precision of the PMP-102, but also equipped with larger and longer heat coil for more heating power range than the PMP-102. An up to 120 mm longer optical ruler, heavy duty pulling mechanism and power supply had been upgraded and developed on the PMP-107Le. The PMP-107Le can also pull polycarbonate capillary tubing by its preset special upgrade sequances and special control heating power. All manufacture preset programmed sequences by expertise give user more selections from short tip to super long tip pulling, from borosilicate glass to polycarbonate capillary tubing options.

Pulling Polycarbonate Plastic Capillary as well as Borosilicate Glass Capillary

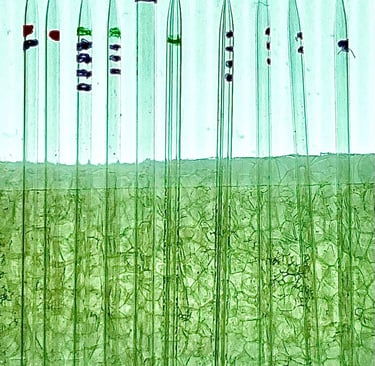

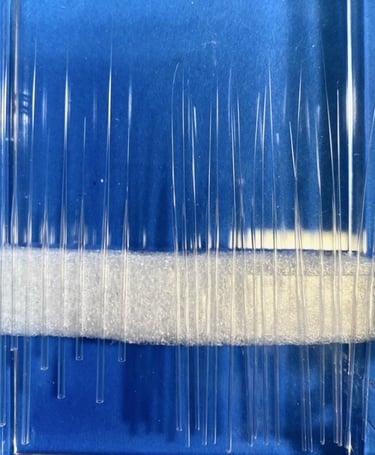

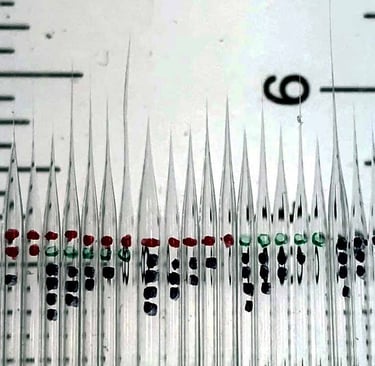

Polycarbonate pipette samples pulled from preset sequences.

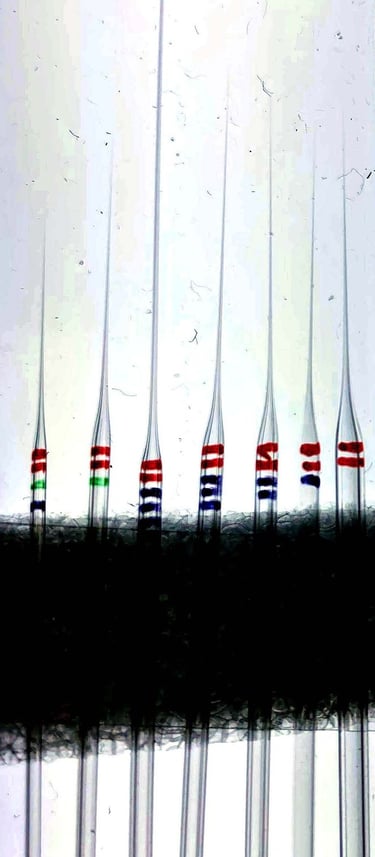

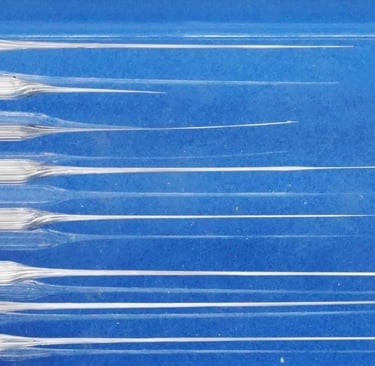

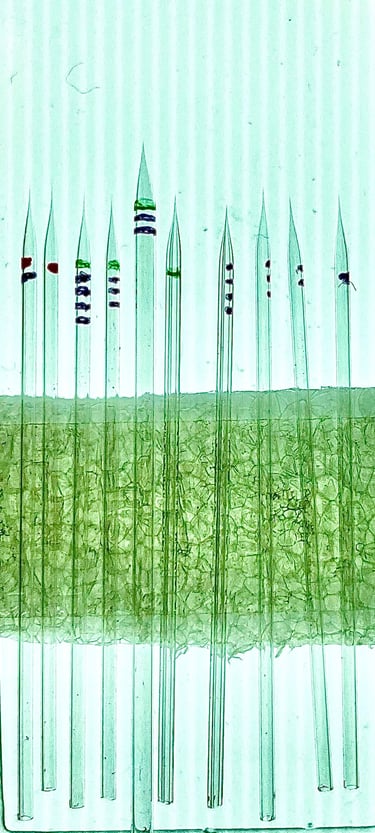

Borosilicate pipette samples pulled from preset sequences

The PMP-102Q has been developed and designed to pull quartz glass (fused quartz, fused silica) pipettes. With a highly successful technique and features designed for the PMP-102 Programmable Micropipette Puller, the PMP-102Q continually adopts advanced microcomputer control, optical ruler measurement, heat control, and precision pneumatic pulling force control for the quartz glass pipette pulling. Another strong point of the PMP-102Q is its use of regular cooking butane gas cartridges as a heating gas source instead of using expensive and complicated laser heating sources. The butane flame is optimally controlled by the PMP-102Q and fits well into a convenient and compact platform. With a total of 99 programmable sequences, the flame, pull force, pulling distance, and timing can be set and programmed in up to 18 different steps in each sequence. There are very useful standard sequences that are preset by MDI experts, presetting from numerous practices and experience.

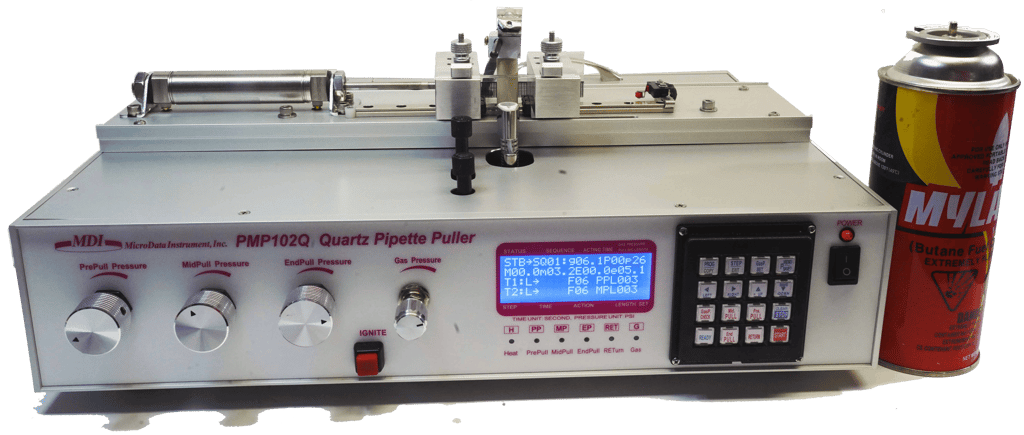

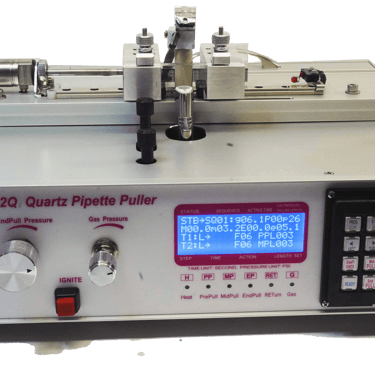

PMP102Q Programmable Quartz Glass Micropipette Puller

Features:

• Pull fused quartz, fused silica and borosilicate glass micropipette with regular cooking butane gas.

• High efficient micro torch with precision flame control without focusing problem.

• Precise tip length setting with horizontal symmetric double pull.

• Expertise Preset Pulling Sequences and Physical Pulled Samples with up to 99 Programmable Savable Sequences for Reliable Reproduction and Creation.

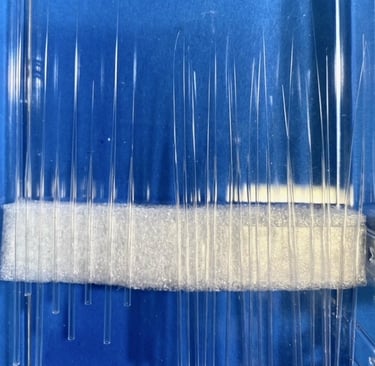

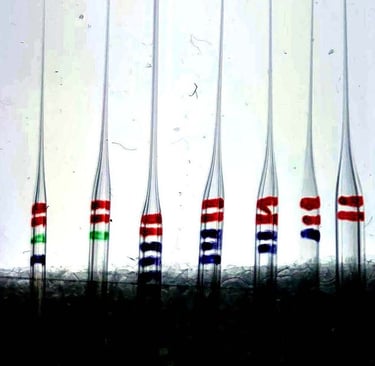

Borosilicate pipette pulled samples

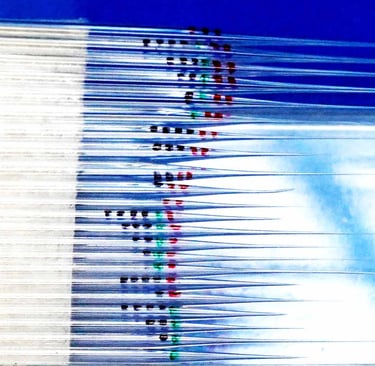

Quartz glass pipette pulled samples

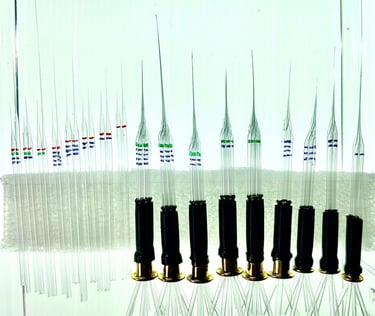

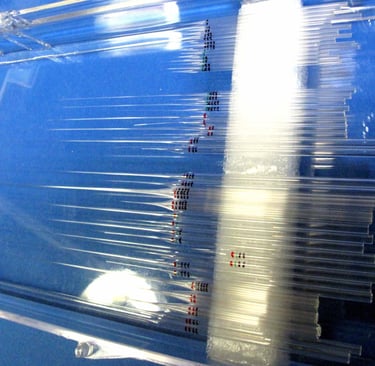

• Physical pipette samples pulled from all preset sequences with color dots indicating different sequences (+1, 5, 10) on every selling unit.

• Physical pipette samples pulled from all preset sequences with color dots indicating different sequences (+1, 5, 10) on every selling unit.
