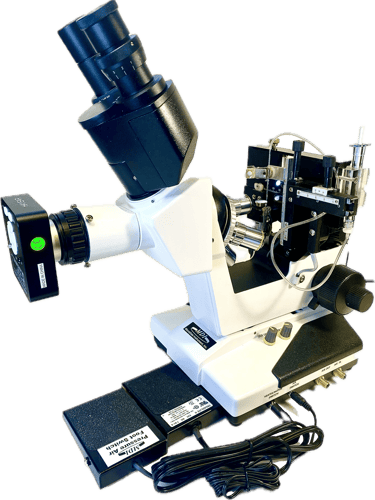

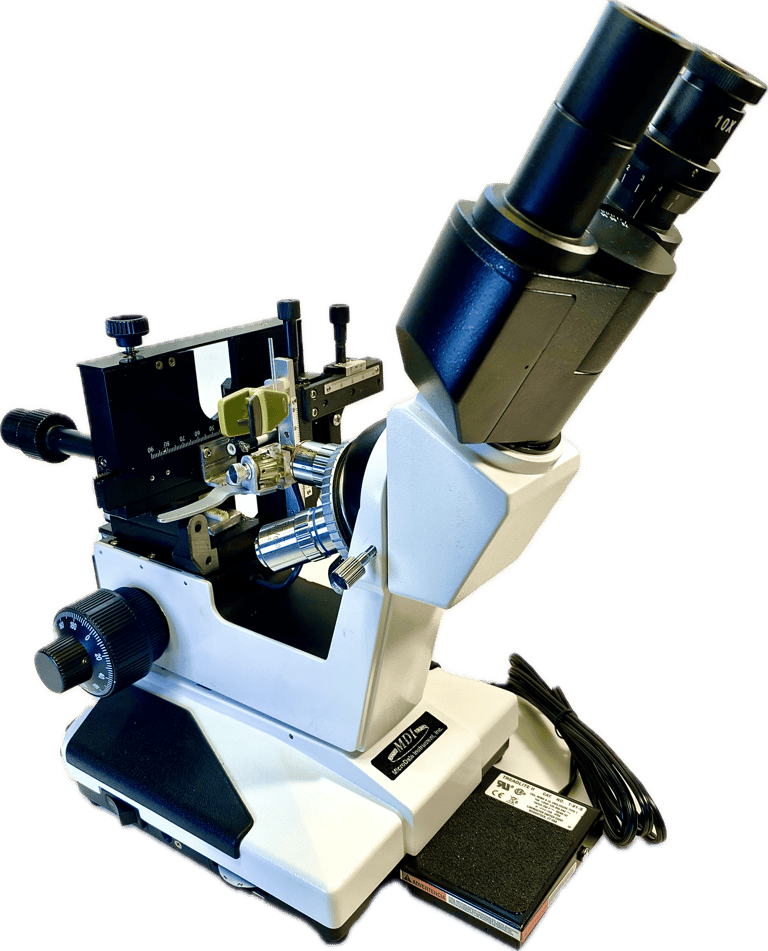

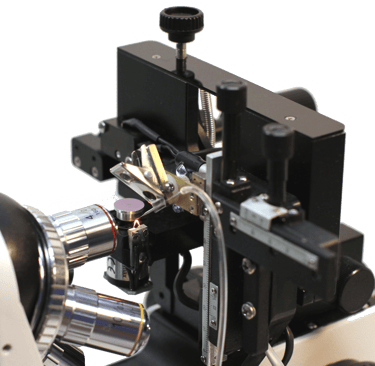

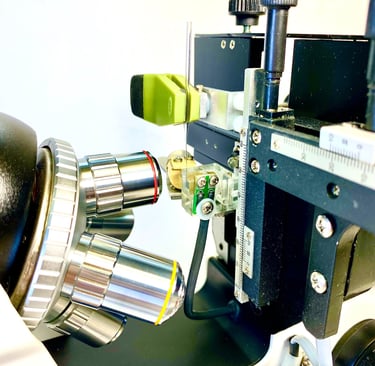

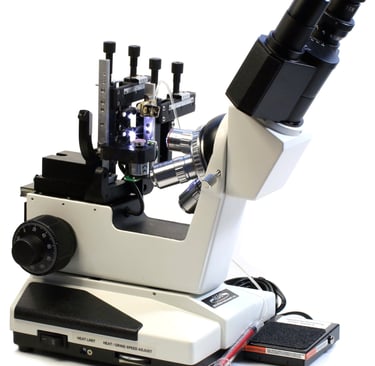

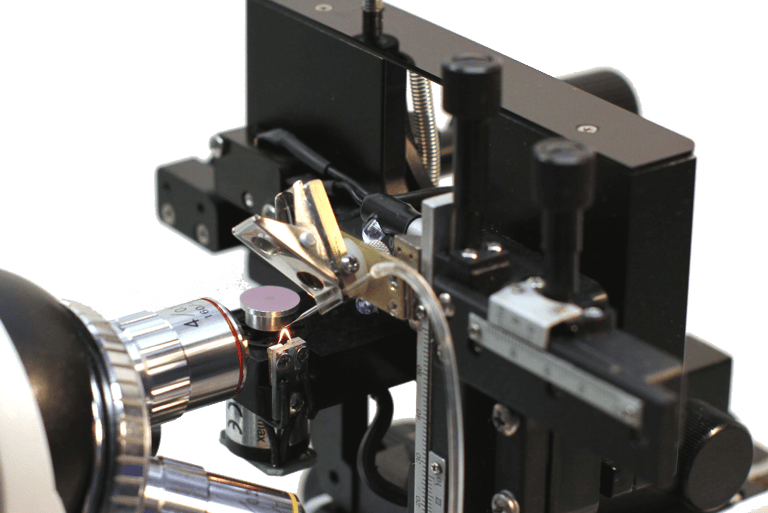

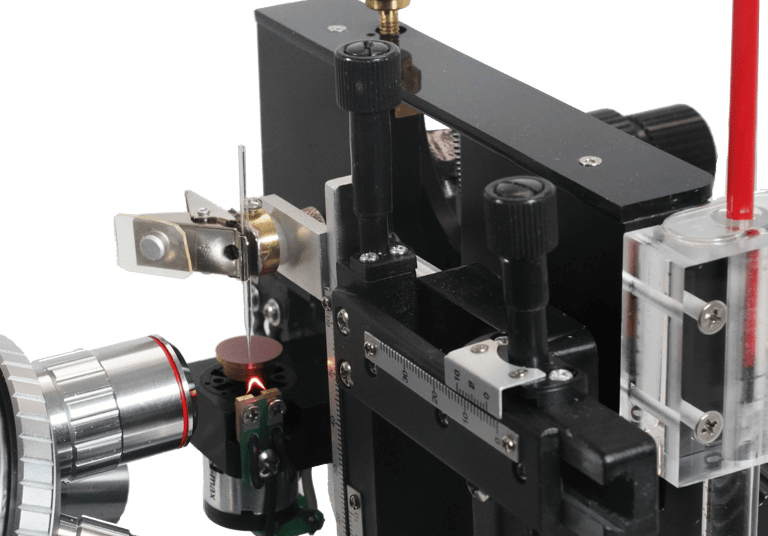

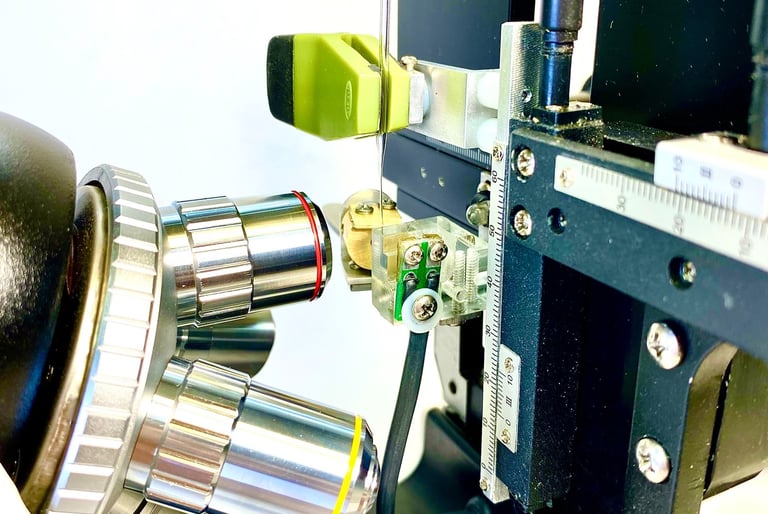

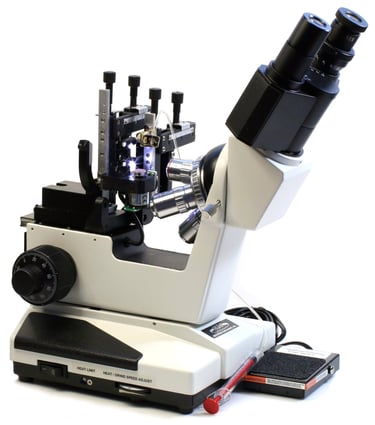

The platform of MFG-5/MFC-5 Microforge-Grinding Center and Microforge-Precision Cutter is made from a high-quality horizontal binocular microscope. A precision optical focus system with a 2-axial micromanipulation pipette holder can handle a single pipette or a multipipette conveniently and precisely. The pipette holder is 360 degrees rotatable for different angle beveling, pipette bending, or polishing. Another 2-axial micromanipulator controls a combination of a platinum mini-heater and a precision microgrinder or a precision cutter. They are situated side by side. Moving the heater and the grinder or the cutter to the focus position will automatically switch the power supply for the aligned tool. There is a foot switch that controls the aligned heater/grinder on/off. An adjusting dial knob controls the heater level or grinder speed.

See Video

MDI's MFG Microforge-Grinding Center series are the first creation design in the world for micropipette / multi-pipette post-pulled tip precision modifications combination. It combines a precision microforge and a microgrinder for borosilicate micro-pipettes or a precision cutter for polycarbonate plastic micro-pipettes in a compact horizontal microscope platform. It can be used for micropipette tip cutting, polishing, shaping, tipping, bending, breaking, beveling, and grinding. It is an ideal micropipette/multi-pipette tip modifications center.

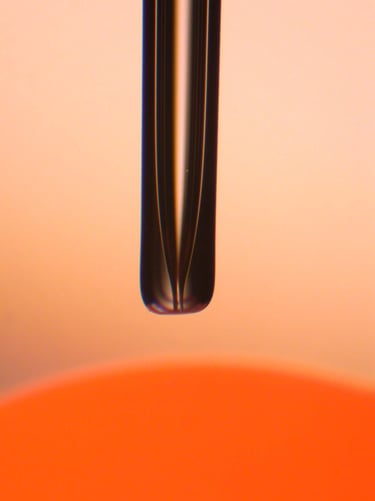

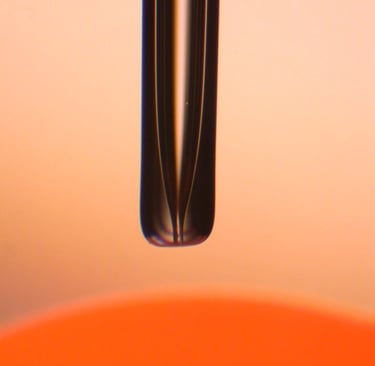

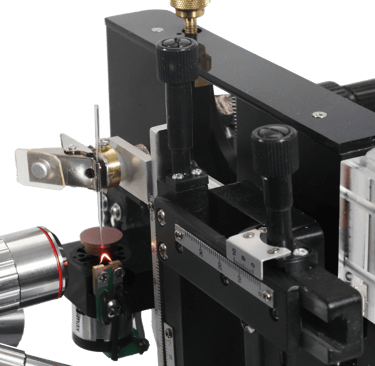

POLISHING

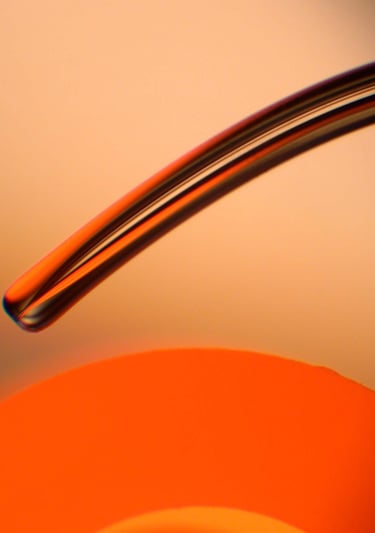

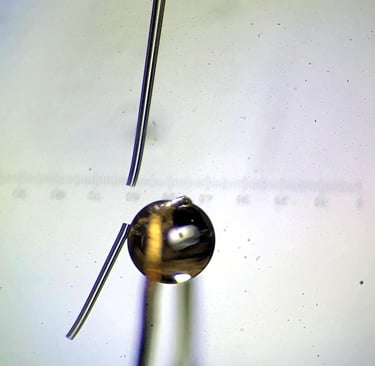

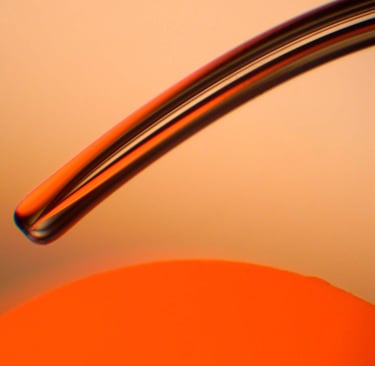

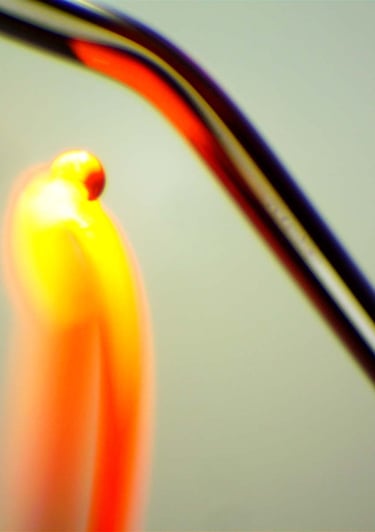

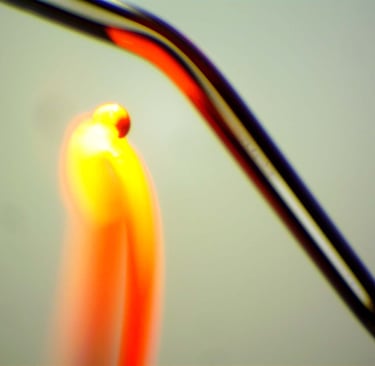

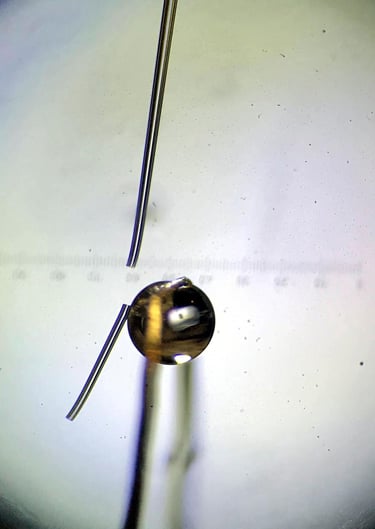

BENDING

CURVING

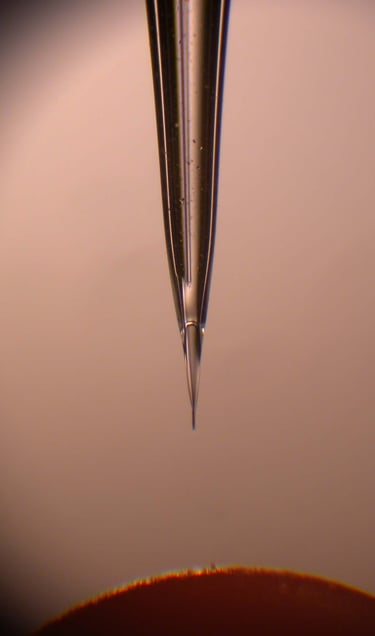

SHAPING

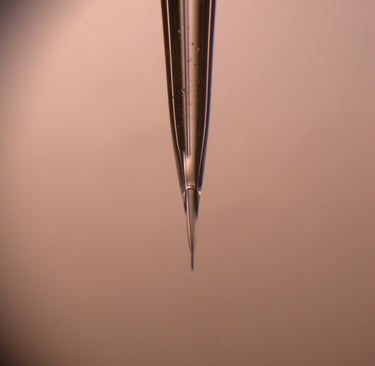

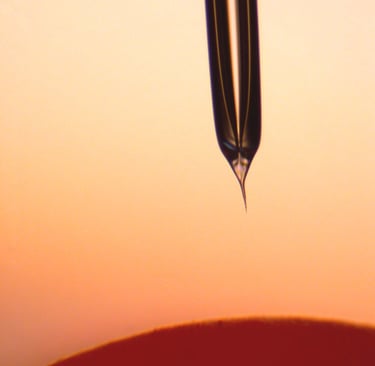

TIPPING

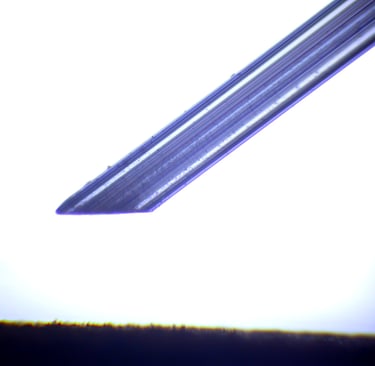

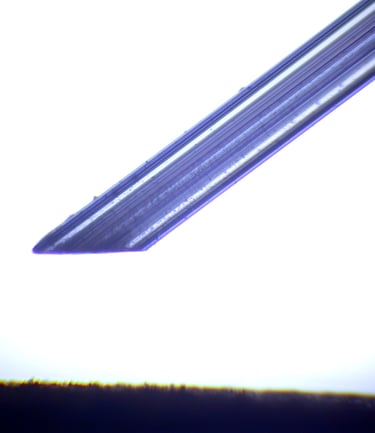

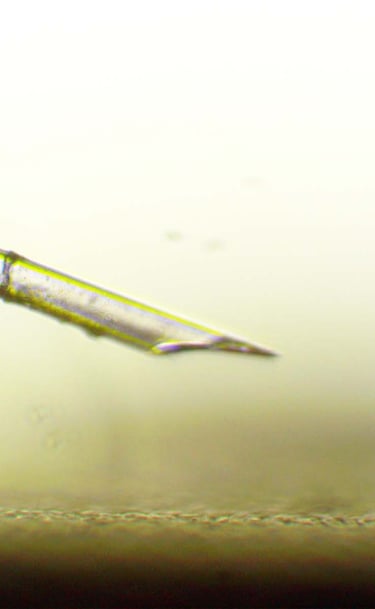

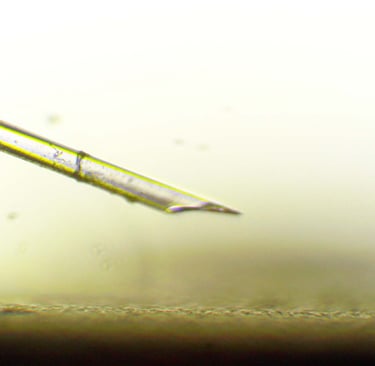

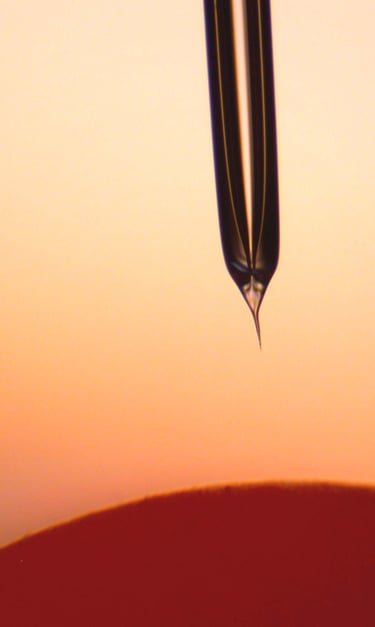

BEVELING

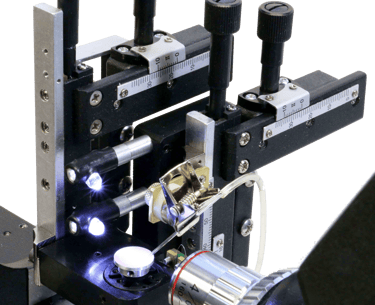

GRINDING

Microforge-Grinding Center Series

MFC-5AP Microforge-Precision Cutter

Body

Eyepiece

Objective lenses

Light

Pipette movement

Heater/grinder movement

Pipette holder

Heater

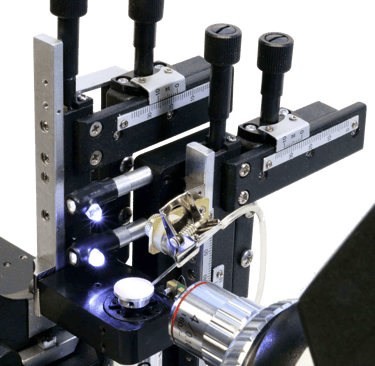

Microgrinder

Air in/output

Accessory

Power Supply

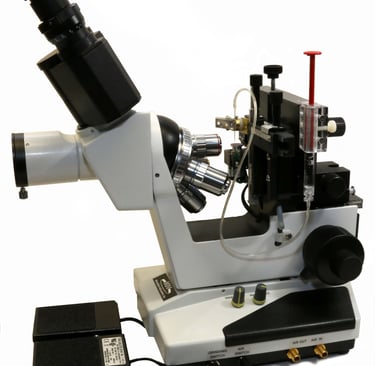

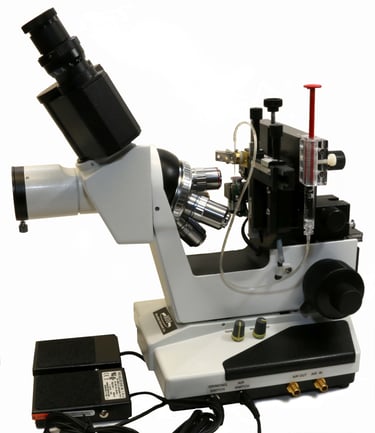

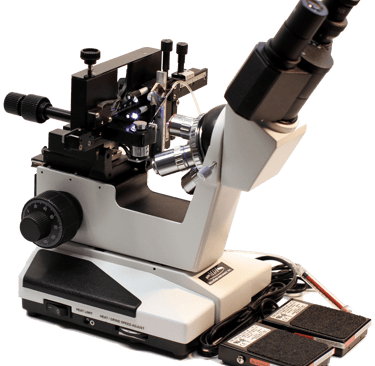

MFG-5AP

MFG-5APT

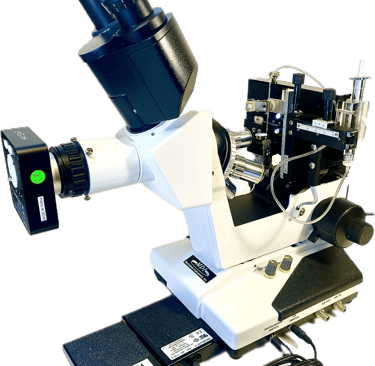

MFG-5APD

Grinding

Bending

Polishing

Horizontal Binocular microscope.

10x, 20xWF. Optional 10x Scaled.

4x, 10x/0.25, Optional: 20x, 40x/0.6 Long Working Distance.

Two adjustable back ground and contour power LED lights.

Two-axial manipulator and coarse-fine focusing adjustment.

Two-axial manipulator with three-dimensional adjustment.

Turnable Easy-clamp for single or multipipette holding.

Precision platinum wire heater

0.1,0.5,1,3um fineness diamond grinding disks with precise micromotor direct-driving.

N/A

One foot switch. Syringe with special connector tubing.

30W, preset 120 or 240VAC

Horizontal Binocular microscope.

10x, 20xWF. Optional 10x Scaled.

4x, 10x/0.25, Optional: 20x, 40x/0.6 Long Working Distance.

Two adjustable back ground and contour power LED lights.

Two-axial manipulator and coarse-fine focusing adjustment.

Precision ball rail manipulators with three-dimensional coarse/fine adjustment and setting.

Turnable Easy-clamp for single or multipipette holding.

Precision platinum wire heater

0.1,0.5,1,3um fineness diamond grinding disks with precise micromotor direct-driving.

Pressure valve, air jet foot switch and in/output connectors,

Two foot switches. Syringe with special connector tubing. In/output air tubing

30W, preset 120 or 240VAC

MFG-5

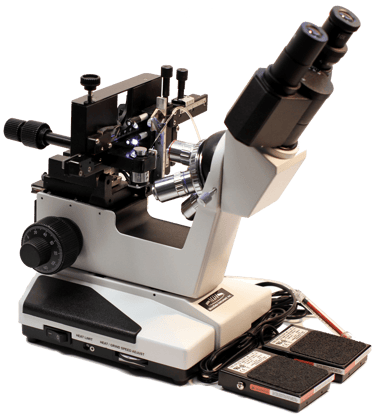

MFG-5AP

Specifications

Platinum Filament Micro-Heater

4 Grades Diamond Disk Microgrinder

Precision Cutter

Pressure Air In/output

Trinocular(T)Binocular(B)

+Tool Precision Fine/Coars Movement

Digital Video Camera

+ + + + + + +

+

+ + + + + ++ ++ ++

+ + + + + + + + +

+

+ + + + + +

B B B B T T B B B T B

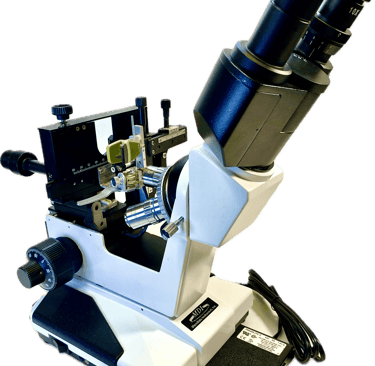

The MFC-5AP Microforge-Precision Cuter is specially designed and made for cutting a pulled polycarbonate pipette tip to a very accurate opening size under precision microscope scale eyepieces. A specially designed and modified extremely sharp blade can perform accurate cutting without frizzy edges. After precision cutting, the polycarbonate pipette can be moved immediately to the micro-heater for gentle polishing. The seamless precision cutting-polishing procedures make the MFC-5AP a perfect precision tool for post-pulled polycarbonate pipette modifications.
