Mouse Control Micromanipulators

For injecting pipette movement
INJECT button-----
FILL button-----
UP/DOWN wheel & VENT button-----

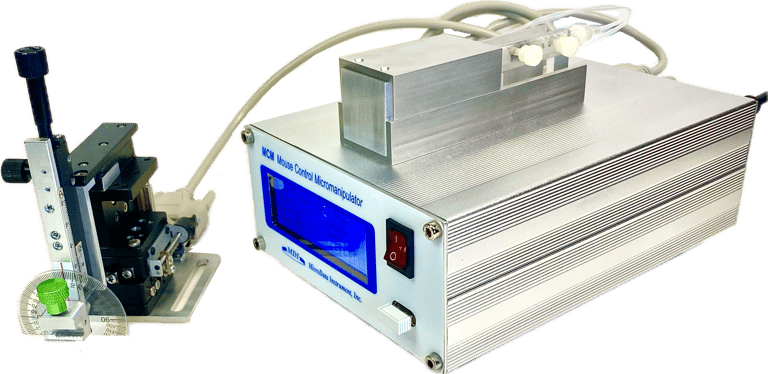

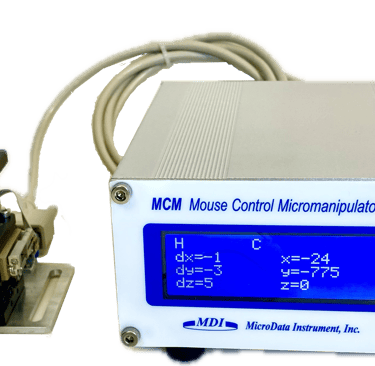

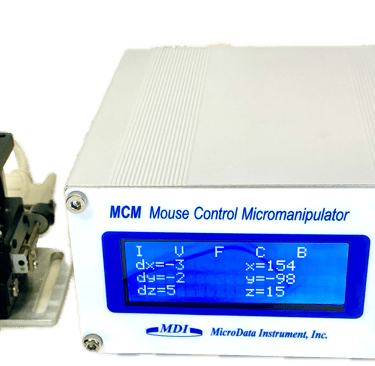

MCM Wireless Mouse Control Micromanipulator
CLEAR button-----
-----MOVING SPEED SELECTING buttons
-----MOVING SPEED SELECTING buttons
HOLD button-----
CLEAR HOLD button-----
BALANCE button-----

Moving the mouse is moving the manipulator X/Y directions simultaneously. If combined with our any PM series unit the mouse buttons will be activated as following functions:

UP/DOWN wheel button-----

Moving the mouse is moving the manipulator X/Y directions simultaneously. If combined with our any PM series unit the mouse buttons will be activated as following functions:

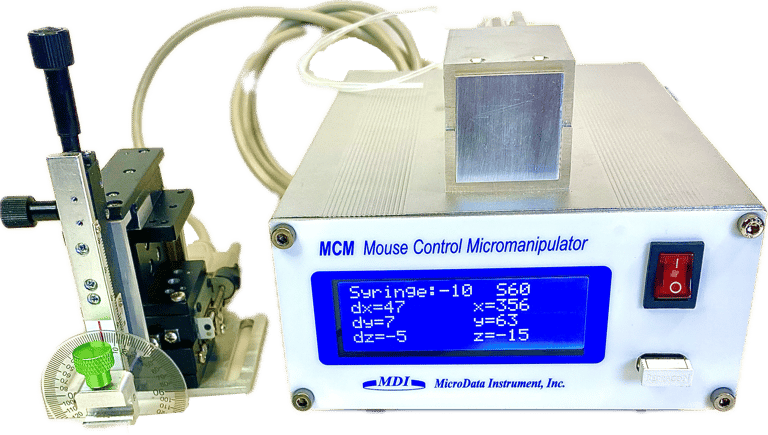

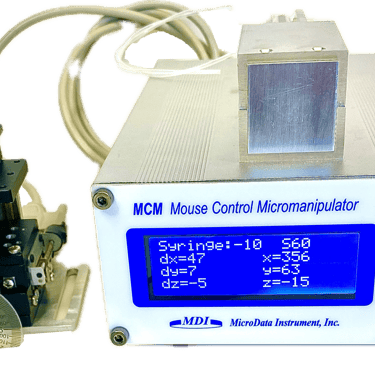

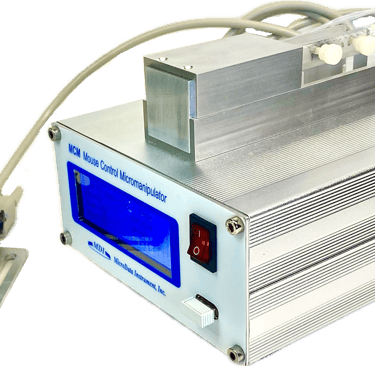

MCM Wireless Mouse Control Micromanipulator and Programmable Syringe

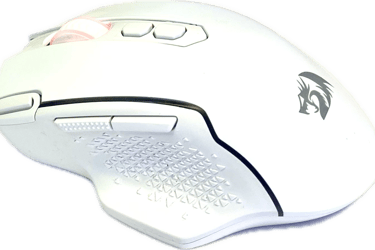

For holding pipette movement

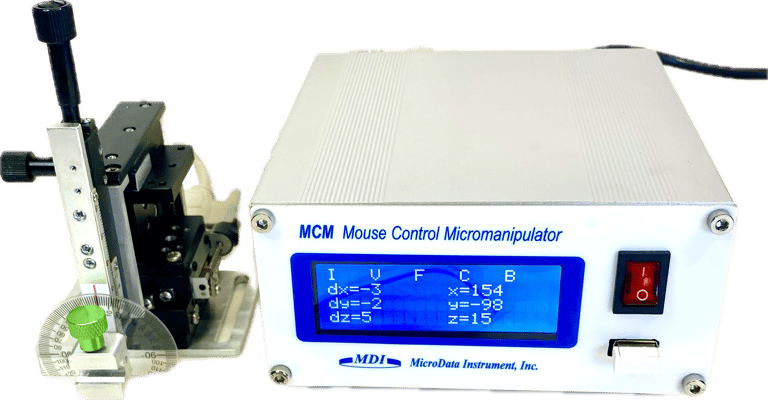

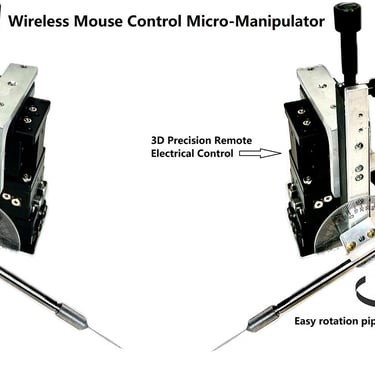

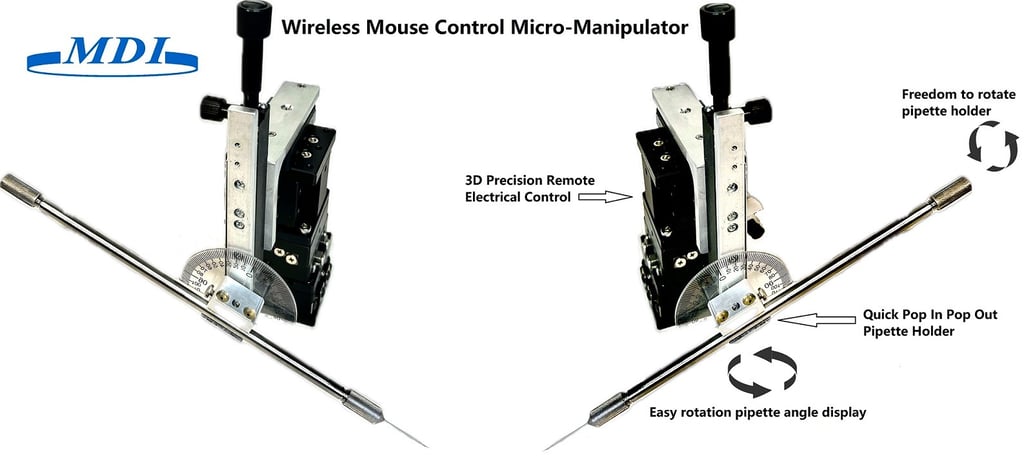

MCM Wireless Mouse Control Micromanipulator

Moving the mouse moves the manipulator in X/Y directions simultaneously. The mouse buttons control the syringe injection and suction, as well as programming the syringe inject/suck volume for each inject/suck button press. Therefore, the syringe inject/suck can be controlled by manual or programmed volume. Depending on different syringe settings, the MCM Programmable Syringe Mouse Control Manipulator will display the volume in/out as well as the 3-D movement distance. The mouse buttons will activate the following functions:

-----SUCKBACK button
UP/DOWN wheel & VOLME PROGRAMING button-----
INJECT button-----
-----MOVING SPEED SELECTING buttons
INCREASING VOLME button---
DECREASING VOLME button-----

10 mm for X, Y and Z 3D. <4 um resolution for all directions.

Specifications:
Mouse Control Movement Range:
Coarse Location Adjusting Range:

Forward/Backward (Y) 20 mm, Up/Down (Z) 35 mm. Ball Spring Holder clamped pipette can be easy moved forward/backward (X) and turning.

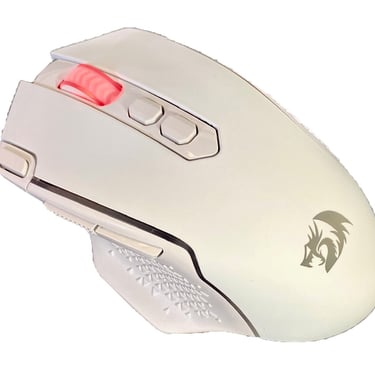

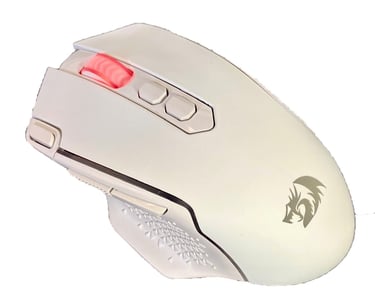

USB connecting wireless advanced special mouse with more than six control buttons.

Power Supply:
Control Mouse:

100-240 VAC, 50-60 Hz. 500 ma.

For further detail or update specifications please email to info@microdatamdi.com or call 908-222-1717

Pipette Holder Clamp:

Can clamp diameter 4 - 6.4 mm pipette holder .

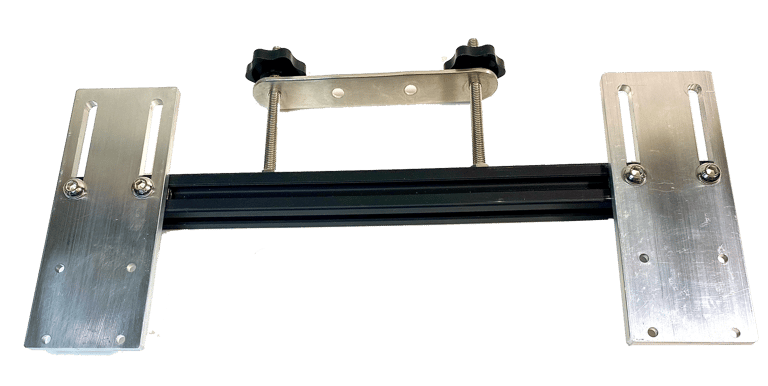

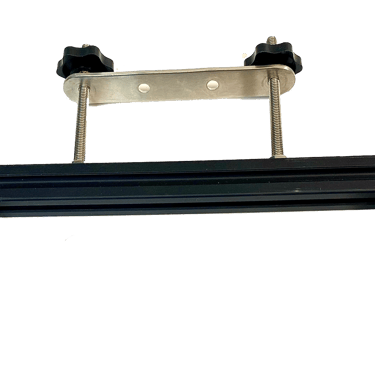

Universal Inverted Microscope Bracket for MCM Micromanipulators
Forward/backward coarse adjusting knob
Up/down coarse adjusting knob
Pipette Holder turning angle ruler
