Programmable Multichannel Microinjection-Perfusion & Microfluidic Systems

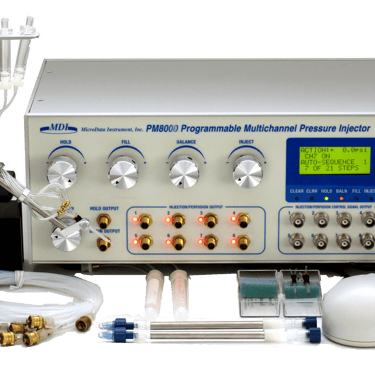

PM8000 8-Channel Presure Injection System
PMFP Programmable Multichannel Microfluidic Pump
Key Features
Basic Accessories:
Optional Accessories:
Output Channels
Input Gas Pressure
Clearing Pressure
Clear Hold Pressure
Injection Pressure
Balance Pressure
Fill Vacuum
Hold Vacuum
Drain Vacuum
Repeatability
Remote Control Port
Trigger Signal Port
Power Consumption
Timer Setting Range
Counter Setting Range
Savable Sequences
Programmable Steps
Foot Switch Ports
10 msec - 327.67 sec. (10 msec. Resolution ) for Inject, Fill, Clear and Clear Hold functions.
1 - 255 for Inject, Fill, Clear and Clear Hold functions.
16 sequences
32 steps for each sequence.
One or optional two programmable foot switch control port(s).
PM6000 & PM8000 SPECIFICATIOS

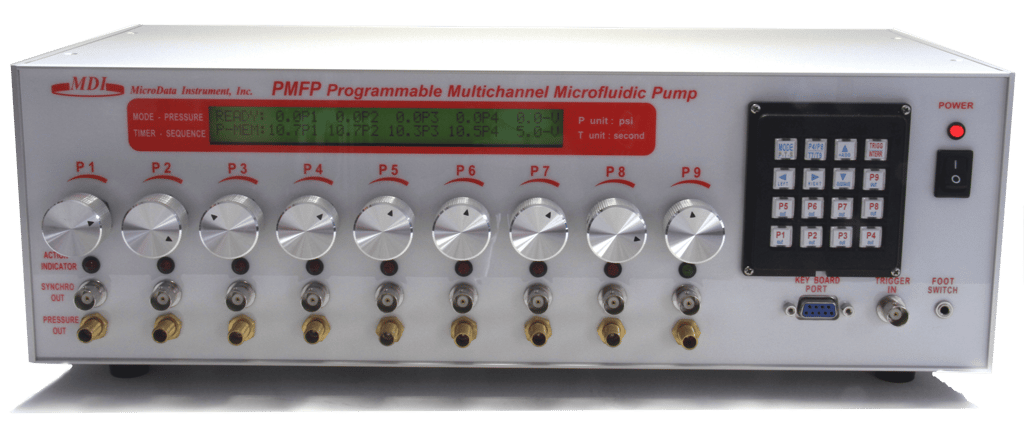

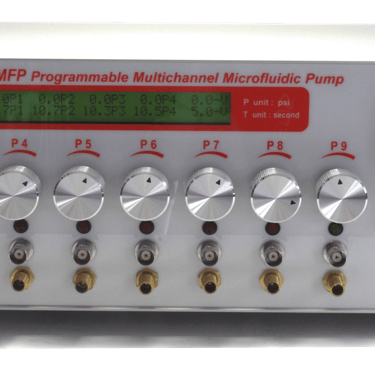

PMFP Programmable Multichannel Microfluidic Pump

  • Multichannel pressure outputs with versatile capabilities and compact size for microfluidic solution driving.

  • Up to eight independent pressure output channels plus one adjustable vacuum suction output channel.

  • Programmable and savable timers and automatic multistep sequences. Adjustable independent nine output pressures, one suction vacuum and savable readings.

  • Nine independent synchronize signal outputs, trigger and interrupt signal input and trigger/interrupt foot switch.

  • Convenient full function control key pad and remote port for remote key pad and rare data code provided computer interface application.

Key Features

The PMFP Programmable Multichannel Microfluidic Pump is designed to drive solutions for various microfluidic devices, microfluidic logics, flow cells, and microfluidic chip applications. Up to eight pressure outputs and one suction vacuum output can be controlled separately or in different channel combinations to perform actions such as outputting different pressures and suctions, different timing, and different automatic sequences. There are up to nine individual regulators for adjustments of the eight channel output pressure and one suction vacuum. An LCD provides a full information display such as pressure, vacuum, time, sequence steps, and actions. During pressure mode, all pressure readings are savable for the next repeat operation. The previous pressure reading can be recalled on the LCD for new pressure setup comparison.

The PMFP provides programmable timers for every independent output control. The PMFP also provides different sequence step times to deliver accurate timing and duration for each step channel's action. The PMFP allows the user to operate manually or automatically multistep sequences, which are designed by the user. There are 15 savable sequences with 20 programmable steps in each sequence. They can be used to perform and repeat different sequential pressure outputs precisely and automatically. Additionally, the sequential step cycles can be automatically performed or triggered with each step manually. All preset timers, pressure reading memory, and sequential steps are saved even if the power is turned off. The PMFP is capable of performing repeatable experiments at any time. An attached footswitch can trigger preset sequence steps or be used as an interrupt trigger during output actions. An optional remote keyboard gives the user another convenient tool to control the whole operation. The remote keyboard port can be interfaced with a computer control. The exceptional versatility and precise multi-output pressure control are the hallmarks of the PMFP.

PMFP SPECIFICATIOS
OUTPUT CHANNEL
LINE VOLTAGE
POWER CONSUMPTION
INPUT AIR PRESSURE
PRESSURE OUTPUT
VACUUM OUTPUT
REPEATABILITY
DISPLAY RESOLUTION
TIMER SETTING
Eight adjustable pressure output channels. One adjustable vacuum suction channel.
100, 120 or 240 VAC
40 Watts
30 - 93 psi
0.2 - 90 psi (regulated and displayed)
0-13 -psi (0"-25" Hg regulated and displayed)
+/- 0.1 psi
+/- 0.1 psi for pressure
0.01sec. to 327.66 sec. (0.01sec. resolution for whole range ) to EXTEND or 0-MANU control.
SAVABLE SEQUENCES
STEPS PER SEQUENCE
REMOTE CONTROL PORTS
OUTPUT SYNCHRO SIGNAL PORTS
TEMPERATURE RANGE
COMPUTER INTERFACE
15 Programmable sequences.
20 Programmable steps
Remote DB9 connector, foot switch jack and Trigger BNC for negative TTL input.
Eight BNCs for pressure output port P1-P8 with positive TTL (0-5V) signals output. One BNC for vacuum suction output port P9 with negative TTL signal (5V-0) output.
4C - 43C (39F - 105F)
DB9 digital input interface with rare input control data code provided.

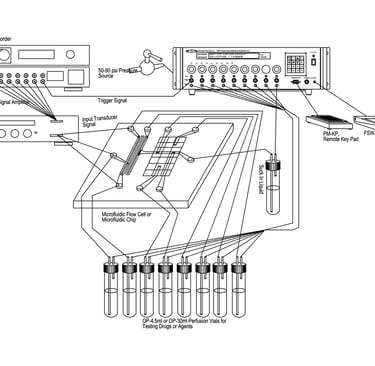

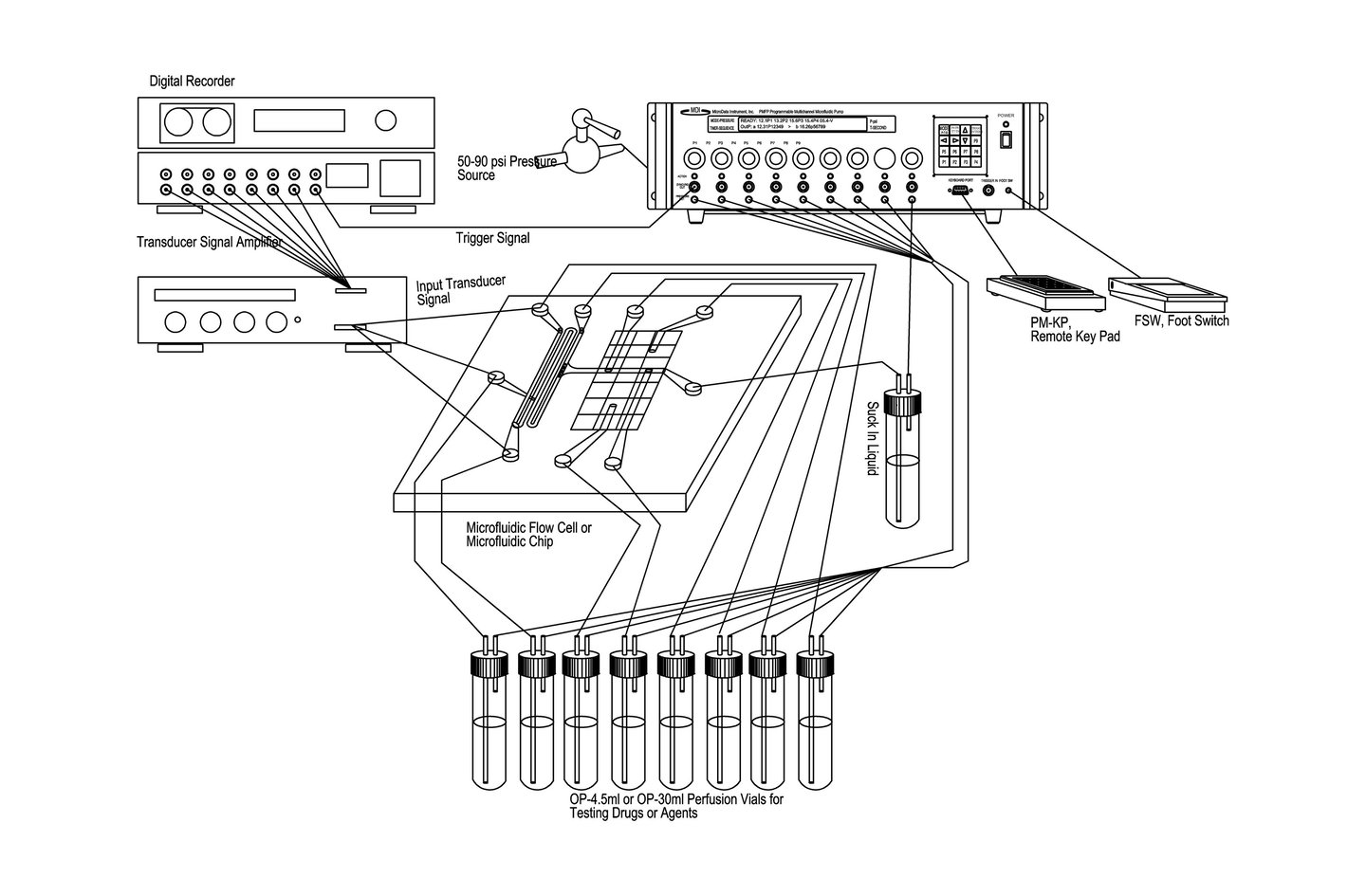

PMFP MICROFLUIDIC SYSTEM SETUP REFERENCE

4 (PM6000) or 8 (PM8000) injection / perfusion outputs, one synchronized drain out and one cell hold channel.

30 - 100 psi

Same as input pressure

0-3 psi (regulated and displayed)

0.3 - 60 psi ( regulated and displayed)

0.05 - 10 psi ( regulated and displayed)

0" - 24" Hg ( regulated and displayed)

0" - 30" of water (regulated and displayed)

0" - 30" of water ( regulated and displayed)

+/- 0.1 psi. Display Accuracy +/- 0.1

One programmable foot switch control port. DB9 connector for optional sophisticated computer interface.

4 (PM6000) or 8 (PM8000) BNCs for injection synchronized signals output and one BNC for AUTO triger input.

100, 120 or 220 VAC, 35 Watts

4 IP-1 Input tubing/connector.

OP-2 output tubing/connector (6 for PM6000, 10 for PM8000).

OV-1.5 perfusion 1.5ml vial (4 for PM6000, 8 for PM8000).

HOLD-4(7) 4(7)-barrel pipette holder.

PP-4(7) pulled 4-barrel pipette for PM6000, 7-barrel for PM8000.

FSW foot switch. Power cord. User’s manual.

OP-4.5ml, OP-10ml, OP-30ml perfusion/drain vial.

STB-1.5 magnetic stand and 1.5ml vial bracket.

HOLD-1 single pipette holder..

PP-4, PP-7 pulled multi-barrel pipette.

RE-KP special remote keypad

MOUSE-1 special remote mouse.

RK-1 rack mounted kit with handle for PM6000.

RK-2 rack mounted kit with handle for PM8000.

  • Multichannel pressure outputs with versatile capabilities and compact size for microfluidic solution driving.

  • Up to eight independent pressure output channels plus one adjustable vacuum suction output channel.

  • Programmable and savable timers and automatic multistep sequences. Adjustable independent nine output pressures, one suction vacuum and savable readings.

  • Nine independent synchronize signal outputs, trigger and interrupt signal input and trigger/interrupt foot switch.

  • Convenient full function control key pad and remote port for remote key pad and rare data code provided computer interface application.

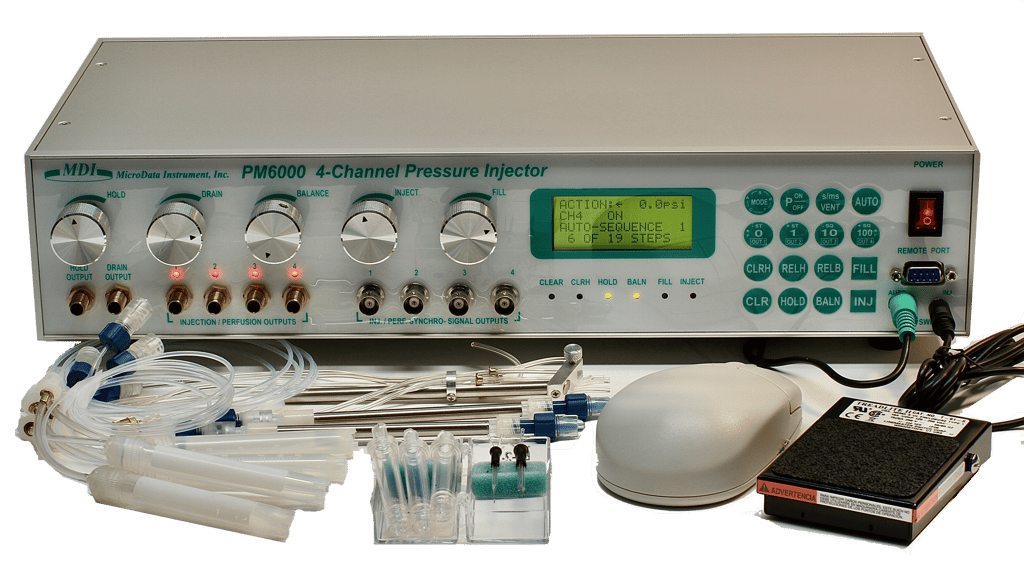

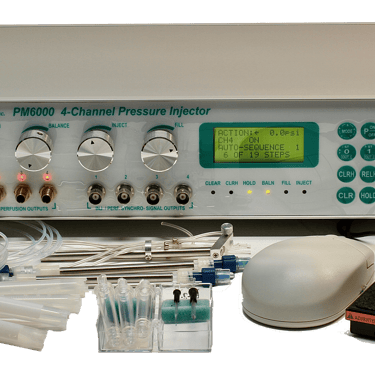

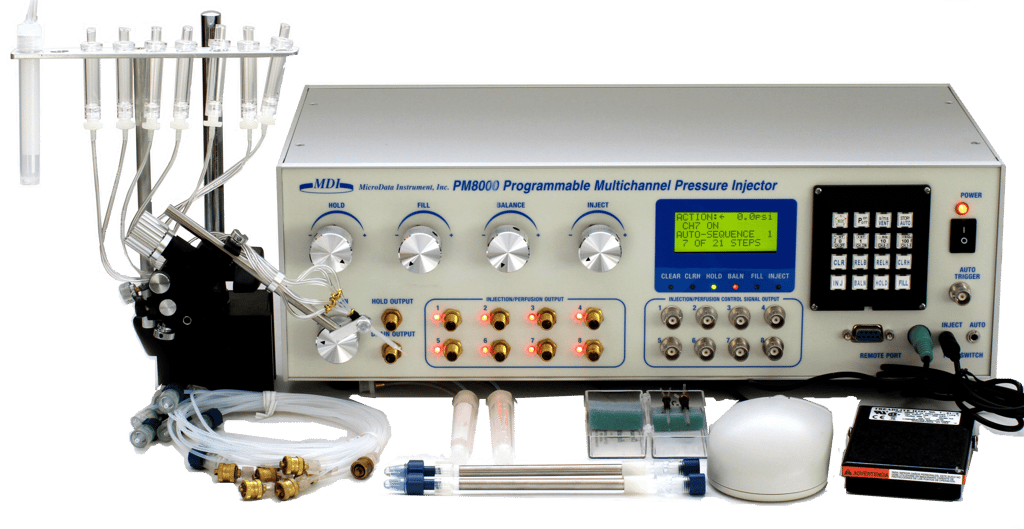

PM6000 4-Channel Presure Injection System

The PM6000 (upgraded from previous model PM2000B) and PM 8000 Programmable 4 and 8-Channel Pressure Injector systems are designed for single to eight channel intracellular injection and extracellular perfusion. They are excellent microinjection and perfusion engines for pharmacological drug testing, molecular biological DNA, RNA transferring, intracytoplasmic sperm injection and cell electrophysiological applications. Combining an advanced microcontroller and precise pneumatic components, these systems can simultaneously control up to eight injection micropipettes or eight perfusion vials and one cell holding pipette and one drain pipette.

The four (PM6000) or eight (PM8000) injection/perfusion output ports can be controlled separately or combined together to perform actions such as injection, capillary action balancing, suction or clear up. The cell holding output port can produce an adjusted gentle suction to hold a cell or eject a pressure to push a cell or completely clear the holding pipette. Another drain output port can simultaneously produce an adjusted suction to drain and clear out liquid before next channel microperfusion. Both PM6000 and PM8000 can deliver different quantity agents and drugs from picolitters to continued perfusion.

All output pressures and vacuums are regulatable and can be real-time displayed on the front panel display. Previous pressure readings can also be recovered on the display for setting comparison.

Besides programmable timers and counters, there are 16 programmable and savable injection/perfusion sequences with 32 programmable steps in each sequence. Each sequence can be repeated continually or triggered manually. The interval time between steps can be programmed for automatic sequential cycle or manual trigger.

A programmable foot switch connector can select one of INJ, FILL, BALN, HOLD, CLER, CLRH, VENT and AUTO actions for foot switch control. A special remote mouse can control INJ, AUTO and FILL functions conveniently. A remote control port can be controlled by an optional remote key pad or provided rare data input code for more sophisticated computer interface control application . With exceptional versatility and extremely precise control, both PM6000 and PM8000 are ideal multichannel injection / perfusion engines.

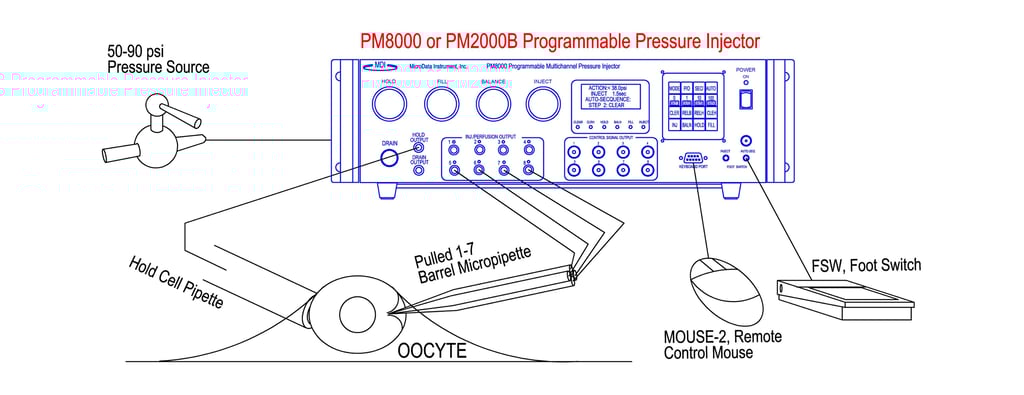

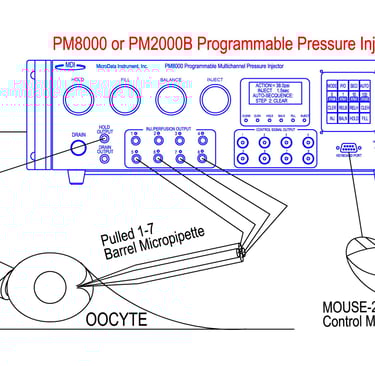

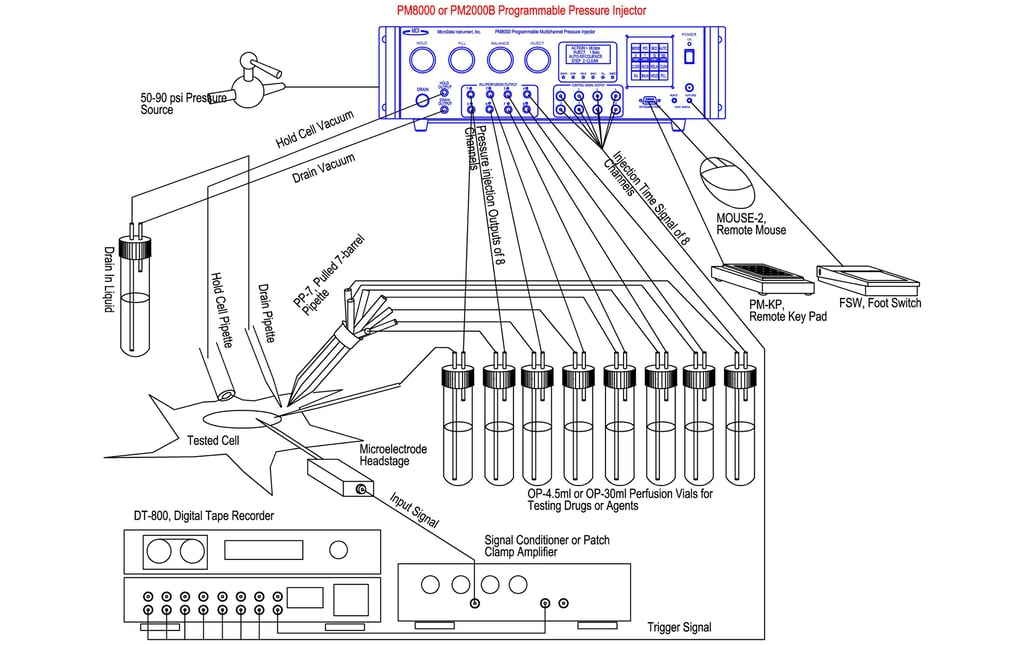

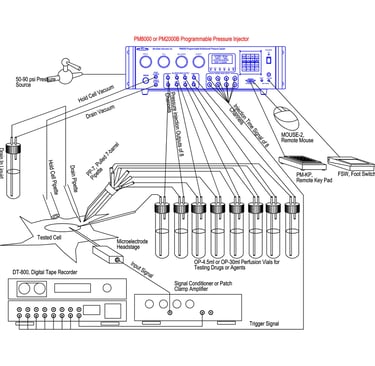

PM8000 INJECT/PERFUSION SYSTEM SETUP REFERENCE
